| Electrical Data (STC) |
| Peak Power (Pmax) |
450 |
| Maximum Power Voltage(Vmp) |
41.5 |
| Maximum Power Current(Imp) |
10.85 |
| Open Circuit Voltage(Voc) |
49.3±3% |
| Short Circuit Current(Isc) |
11.6±3% |
| Module Efficiency (%) |
20.7 |
| *STC: irradiance 1000 W/m2, AM 1.5G, and cell temperature of 25°C |
|
|
| Electrical Data (NOCT) |
| Peak Power (Pmax) |
336.1 |
| Maximum Power Voltage(Vmp) |
38.6 |
| Maximum Power Current(Imp) |
8.7 |
| Open Circuit Voltage(Voc) |
46.2±3% |
| Short Circuit Current(Isc) |
9.38±3% |
| *NOCT: irradiance 800 W/m2, AM 1.5G, ambient temperature 20°C, wind speed 1m/s |
|
|
| Temperature and Maximum Rating |
| Maximum System Voltage(V) |
1500V |
| Maximum Series Fuse Rating(A) |
20A |
| Power Tolerance |
0~+3W |
| Pmax Temperature Coefficients (W/°C) |
-0.350% |
| Voc Temperature Coefficients (V/°C) |
-0.270% |
| Isc Temperature Coefficients (A/°C) |
+0.048% |
| NOCT Nominal Operating Cell Temperature(°C) |
45±2°C |
| Operating & Storage Temperature(°C) |
-40~+85°C |
|
|

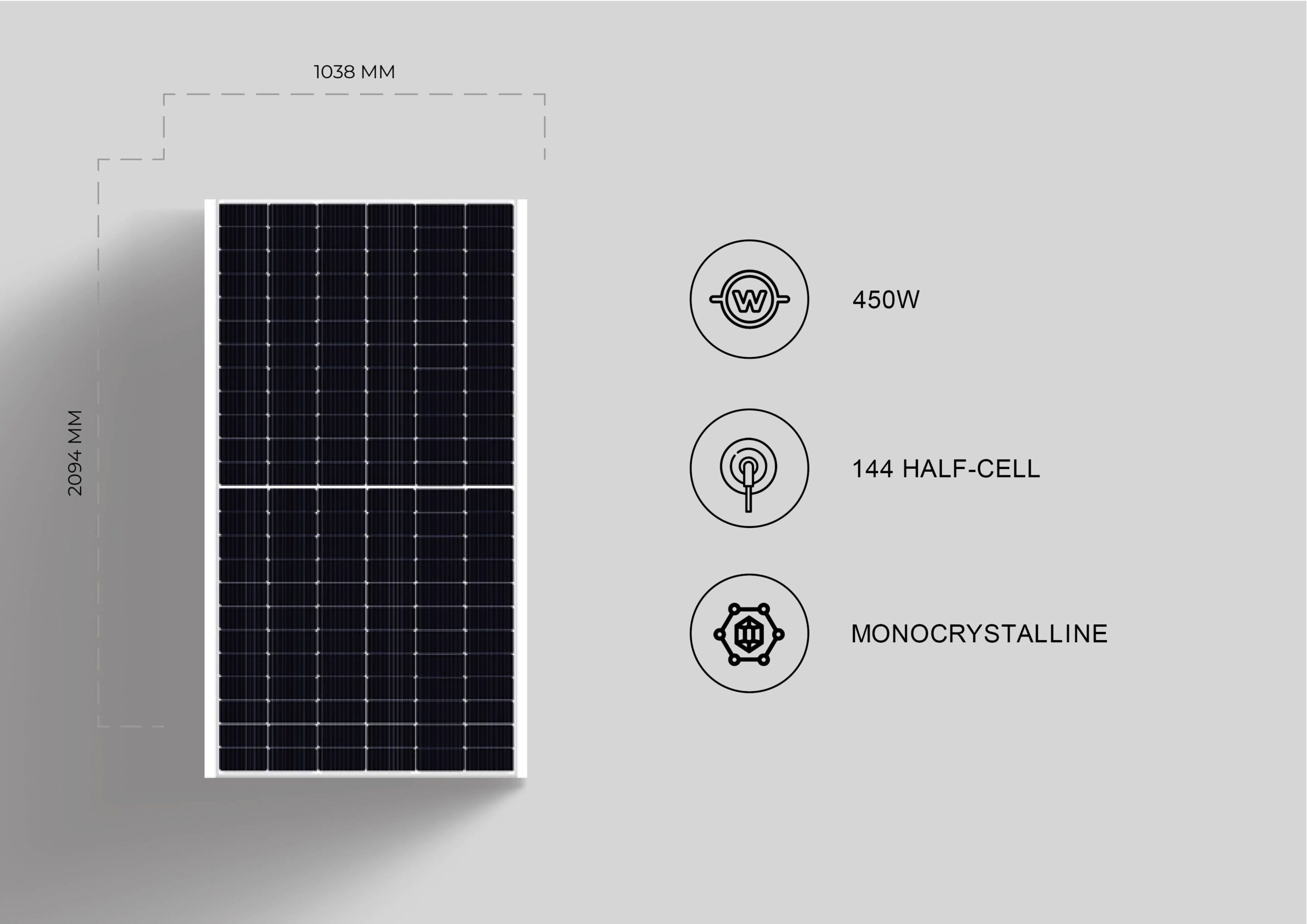

| Mechanical Characteristics |
| Cell Type |
166*83 Mono |
| No. of Cells |
144(6×12)*2 |
| Dimensions |
2094*1038*35mm |
| Weight |
22.82 Kg |
| Front Glass |
3.2mm high transmission, low iron, tempered glass |
| Frame |
Anodised Aluminium Alloy |
| Junction Box |
IP67/IP68 3 Diodes |
| Output Cables |
4mm² cable 30cm+mc4 |
| Max Wind Load / Snow Load |
2400Pa/5400Pa |
|
|
| Qualifications and Certificates |
